Description

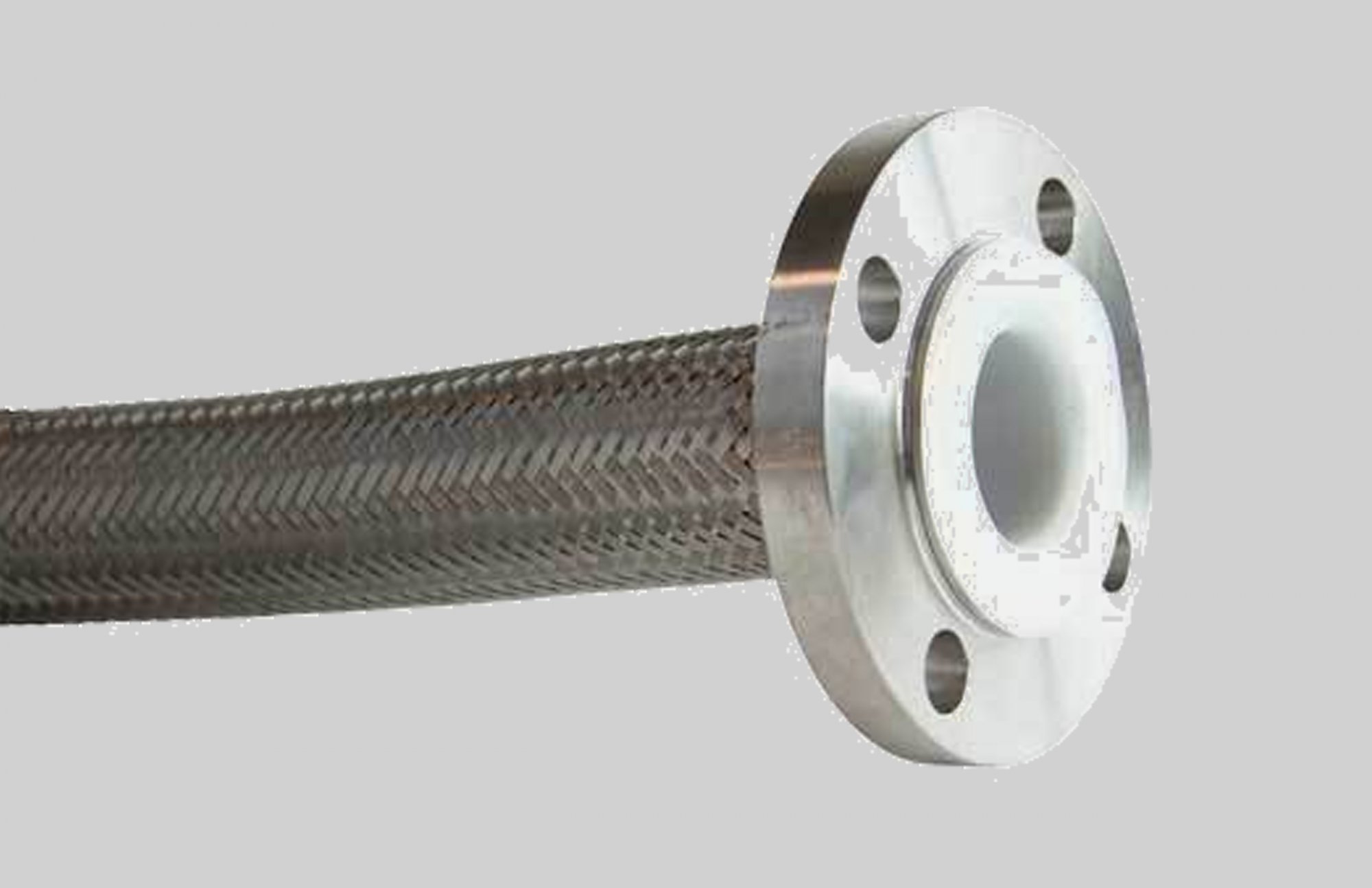

Lined, Stainless Steel Hose, Lap Joint Flange Both Ends
Temperature Range:
-65°F to +350°F
Test Pressure:
1.5 times oper.pressure
Clean, Dry, Cap and Seal
Class 300 Flanges also available
Lined, Stainless Steel Hose, Lap Joint Flange Both Ends
Temperature Range:
-65°F to +350°F
Test Pressure:
1.5 times oper.pressure
Clean, Dry, Cap and Seal
Class 300 Flanges also available
Lined, Stainless Steel Hose, Lap Joint Flange Both Ends
Temperature Range:
-65°F to +350°F
Test Pressure:
1.5 times oper.pressure
Clean, Dry, Cap and Seal
Class 300 Flanges also available
| Nom Size | Hose I.D. | Hose O.D. |
Working Pressure (P.S.I.) 70°F   -   350°F |
Min. Bend Radius (Inches) |
Vacuum Rating @ 70°F |
Vacuum Rating @ 250°F |
"A" REF |
| 1" | 0.86 | 1.50 | 275Â Â Â Â Â Â Â Â Â 200 | 10 | FULL | FULL | 3.00 |
| 1 1/2" | 1.32 | 2.12 | 275Â Â Â Â Â Â Â Â Â 200Â | 12 | FULL | FULL | 3.00 |
| 2" | 1.82 | 2.75 | 275Â Â Â Â Â Â Â Â Â 200Â | 18 | FULL | FULL | 3.50 |
| 3" | 2.90 | 4.10 | 275Â Â Â Â Â Â Â Â Â 200Â | 28 | FULL | 26" | 3.50 |
| 4" | 3.75 | 5.12 | 250Â Â Â Â Â Â Â Â Â 190Â | 42 | FULL | 24" | 4.00 |
| 6" | 5.75 | 7.30 | 200Â Â Â Â Â Â Â Â Â 160Â | 60 | 22" Hg | 20" | 4.50 |
| 8" | 7.75 | 9.45 | 185Â Â Â Â Â Â Â Â Â 160Â | 84 | 22" Hg | C.F. | 5.00 |
