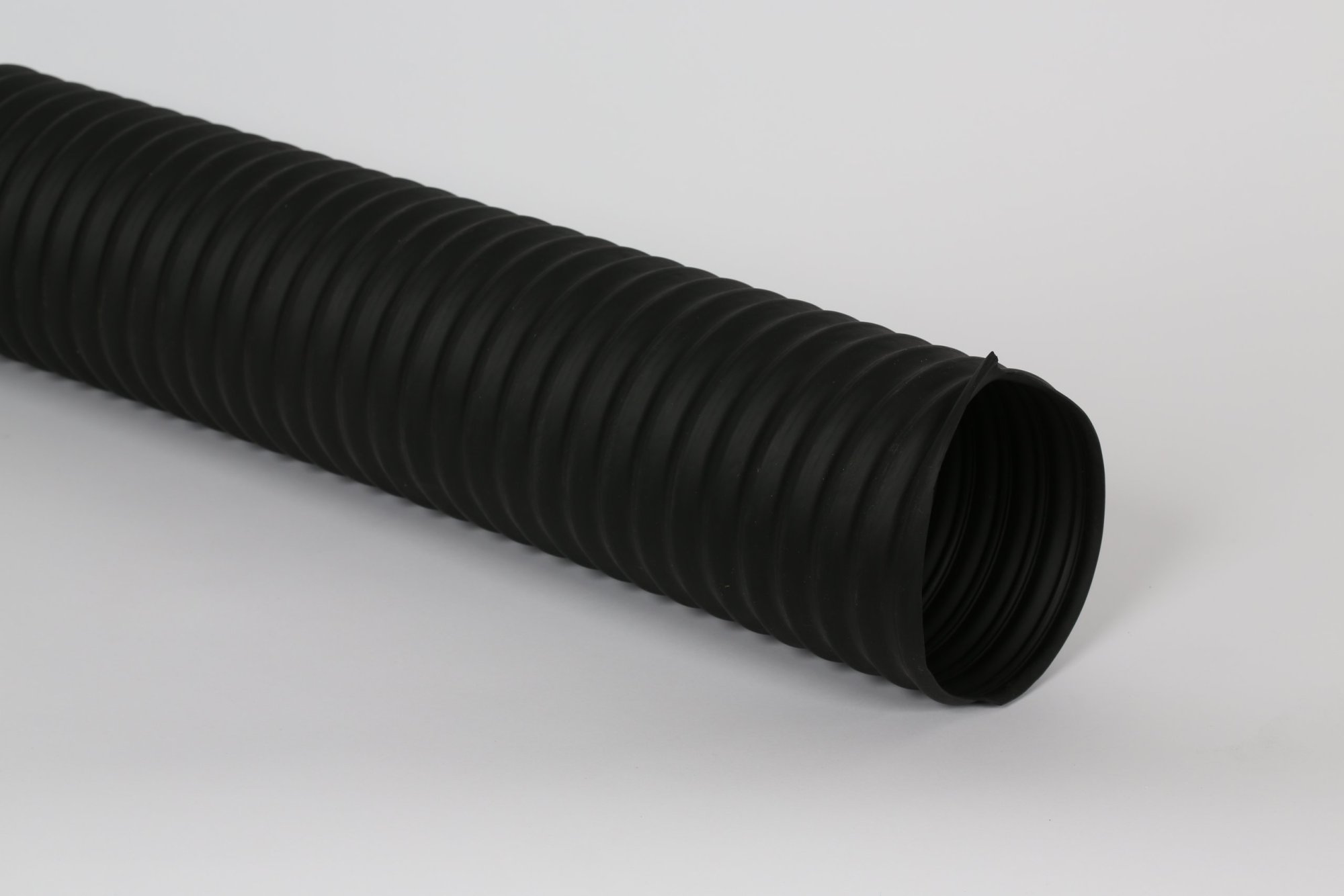

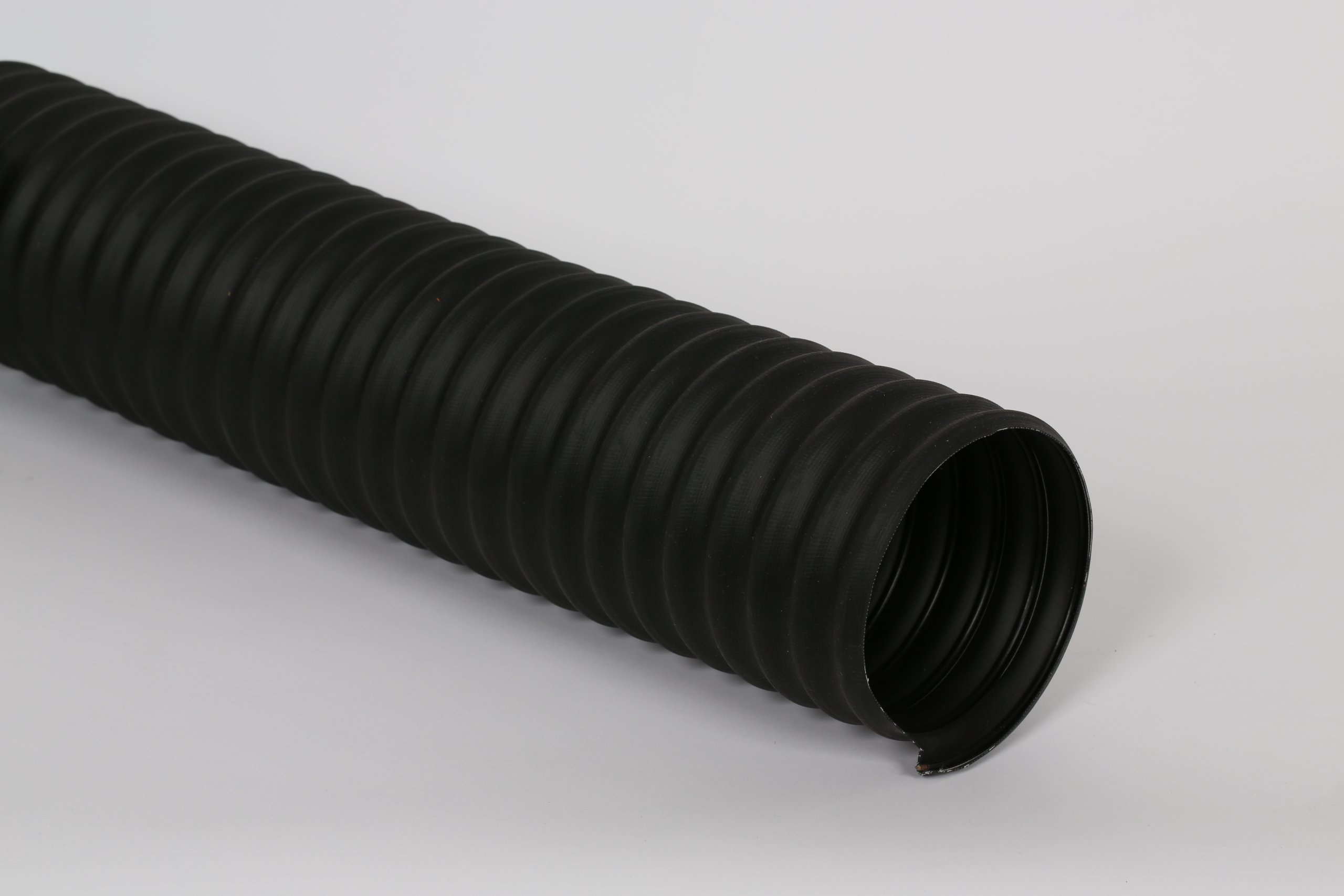

Description
Applications:
• Same as RFH but can handle higher pressure and abrasion
Tube:
• Thermoplastic rubber
Reinforcement/Cover:
• Wire helix
Temp Range:
• -60°F to +275°F (intermittent to 300˚F)
Applications:
• Same as RFH but can handle higher pressure and abrasion
Tube:
• Thermoplastic rubber
Reinforcement/Cover:
• Wire helix
Temp Range:
• -60°F to +275°F (intermittent to 300˚F)
Applications:
• Same as RFH but can handle higher pressure and abrasion
Tube:
• Thermoplastic rubber
Reinforcement/Cover:
• Wire helix
Temp Range:
• -60°F to +275°F (intermittent to 300˚F)
| Part # |
I.D (in.) |
O.D. (in.) |
Working PSI |
Bend Radius ( in.) |
Weight Radius (in.) |
Standard Length |
| RFHBK400HD | 4 | 4.35 | 12 | 6.50 | .66 | 25,50 |
| RFHBK600HD | 6 | 6.38 | 7 | 8.50 | .91 | 25,50 |
| RFHBK800HD | 8 | 8.41 | 8 | 12.00 | 1.10 | 25,50 |
| RFHBK1000HD | 10 | 10.45 | 8 | 14.00 | 1.66 | 25,50 |
| RFHBK1200HD | 12 | 12.45 | 6 | 16.00 | 2.20 | 25,50 |
| Diameter | 4", 6", 8", 10", 12" |
|---|
