Description

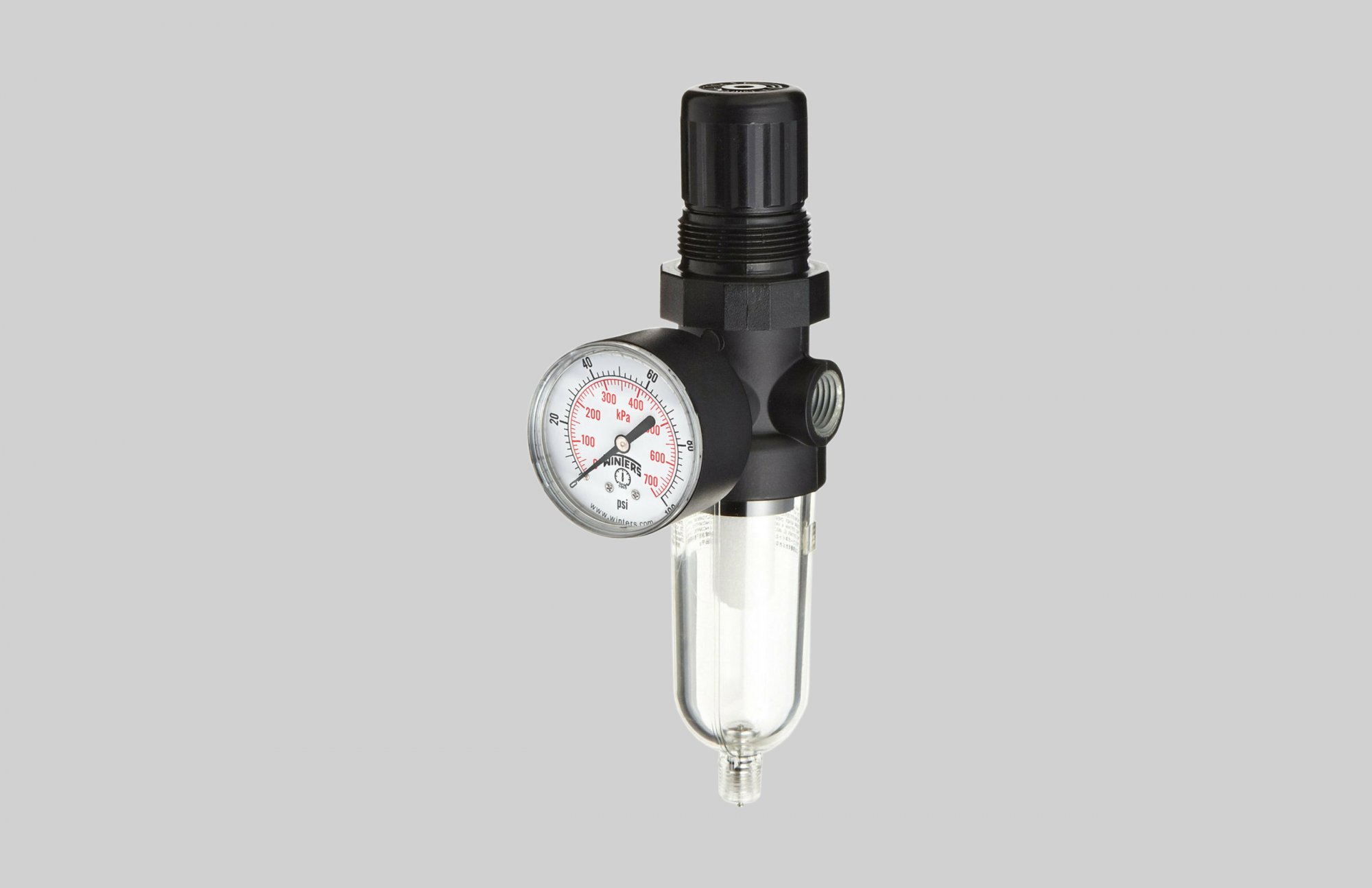

With Gauge – Manual Drain for Compressed Air Systems.
- 1/4″ female NPT port with 1/8″ gauge port
- maximum inlet pressure: 150 PSIG
- 5 micron element
- 1 oz. transparent polycarbonate bowl
- outlet pressure adjust range: 5 to 100 PSIG
With Gauge – Manual Drain for Compressed Air Systems.
With Gauge – Manual Drain for Compressed Air Systems.
| Part Number | B07-202MGC |
|---|---|
| Port | 1/4" |
| Pressure Range | 5-100 PSI |
| Inlet Pressure | 150 PSI max |
| Maximum Temperature | 125°F (51°C) |
| Flow | 14 SCFM |
| Weight lb | 0.6700 |
