Description

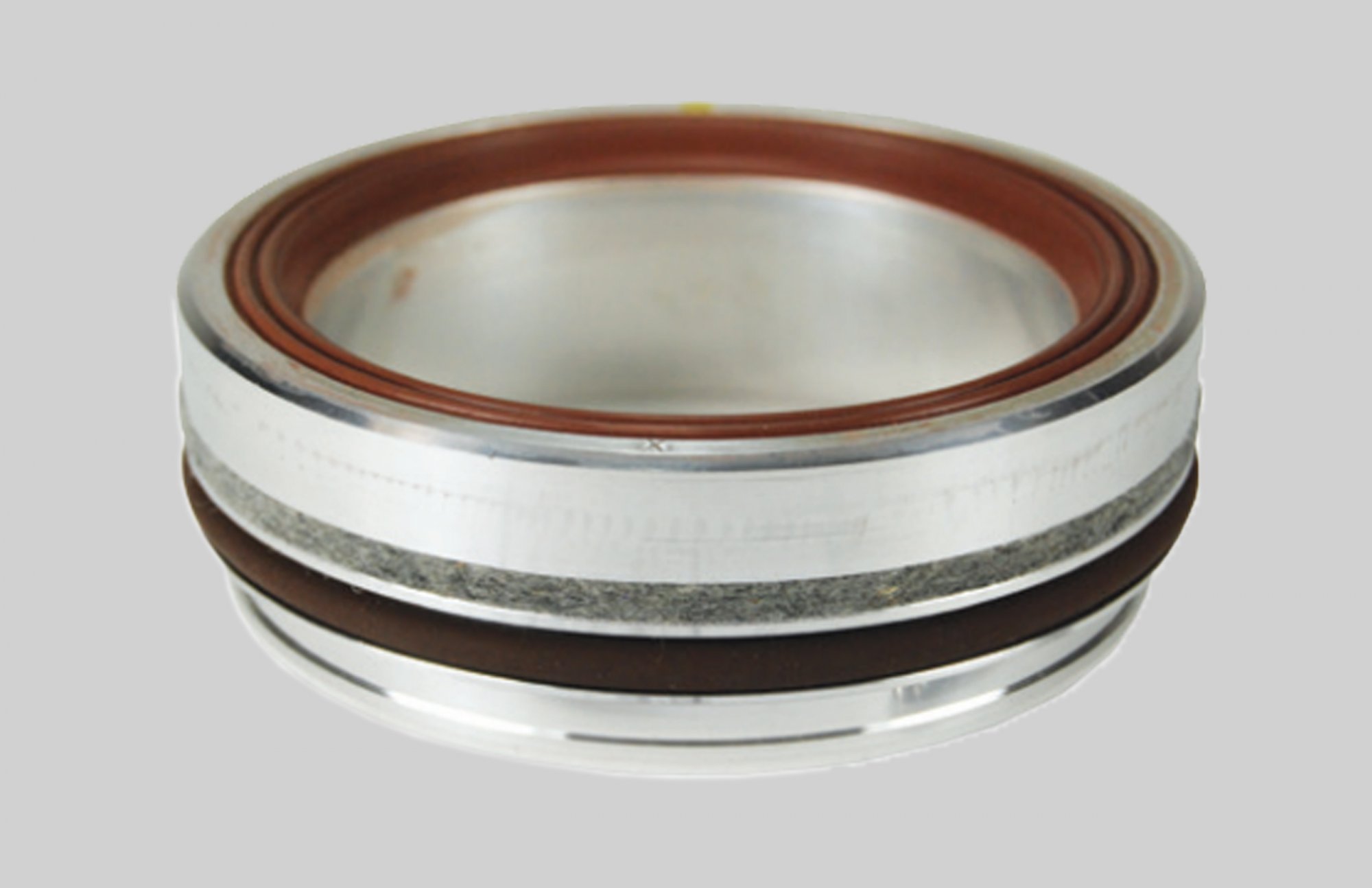

- Bonded nose seal offers long life and cannot be washed out

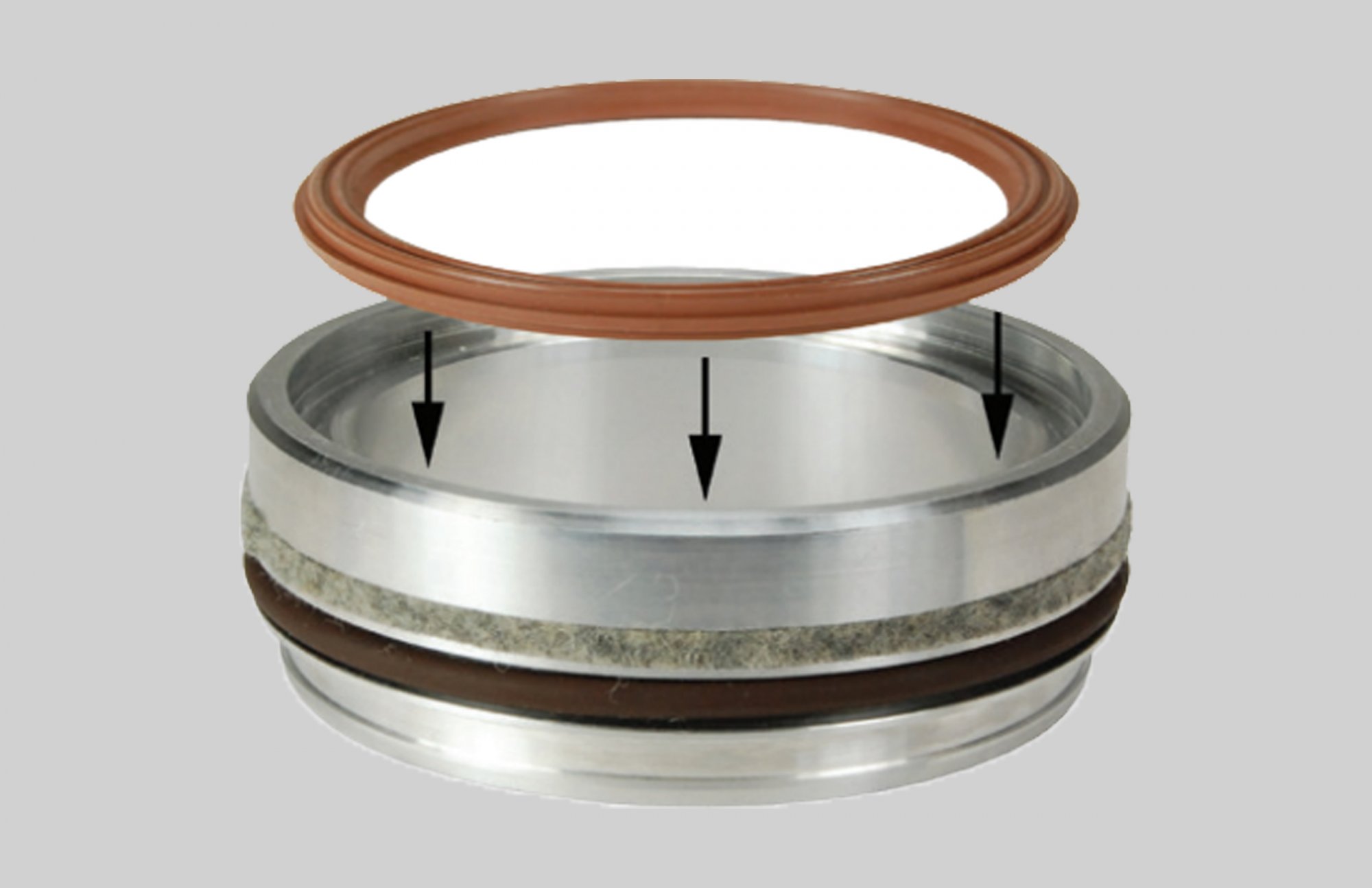

- Replaceable nose seal – replaceable without removal from the loading arm
| Size (in.) |
Seal Material |
Bonded Nose Seal Part # |
Maximum Working Pressure |
Replaceable Nose Seal Part # |
Maximum Working Pressure |
| 4" | BUNA | 5300 | 150 | 5400 | 75 |
| FKM-B | 5300B | 150 | 5400B | 75 | |
| FKM-GFLT | 5300G | 100 | 5400G | 75 | |
| FKM-B | 5300BC (1) | 150 | - | - |
(1) Designed for high sulfur crude oil service
Repair Kits:
|
Part # |
Description |

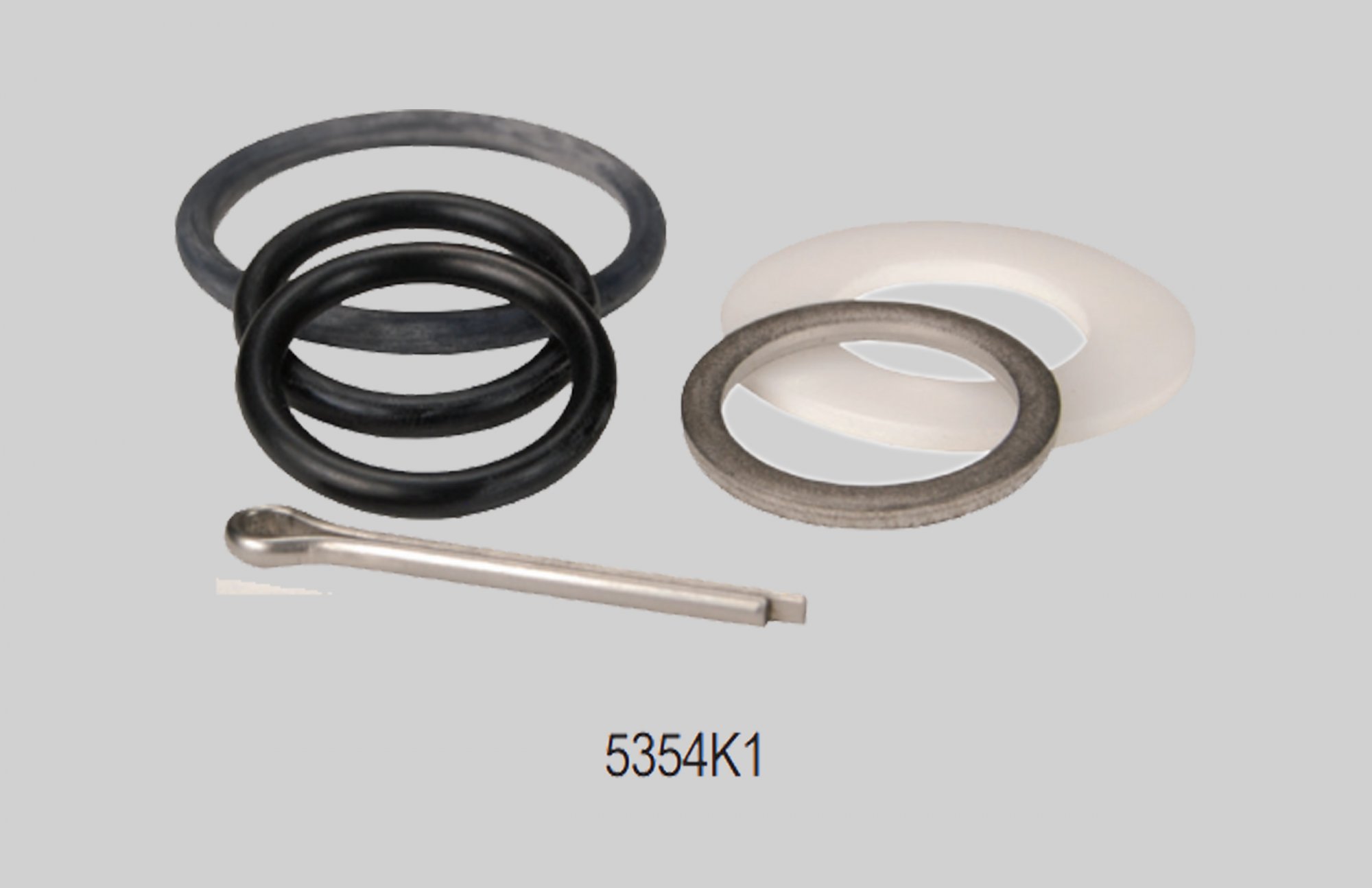

| 5354K1 | Buna shaft seal kit (for 5300 and 5400) |
| 5354K3 | FKM-B shaft seal kit (for 5300B and 5400B) |
| 5354K7 | Bonded buna nose seal (for 5300) |

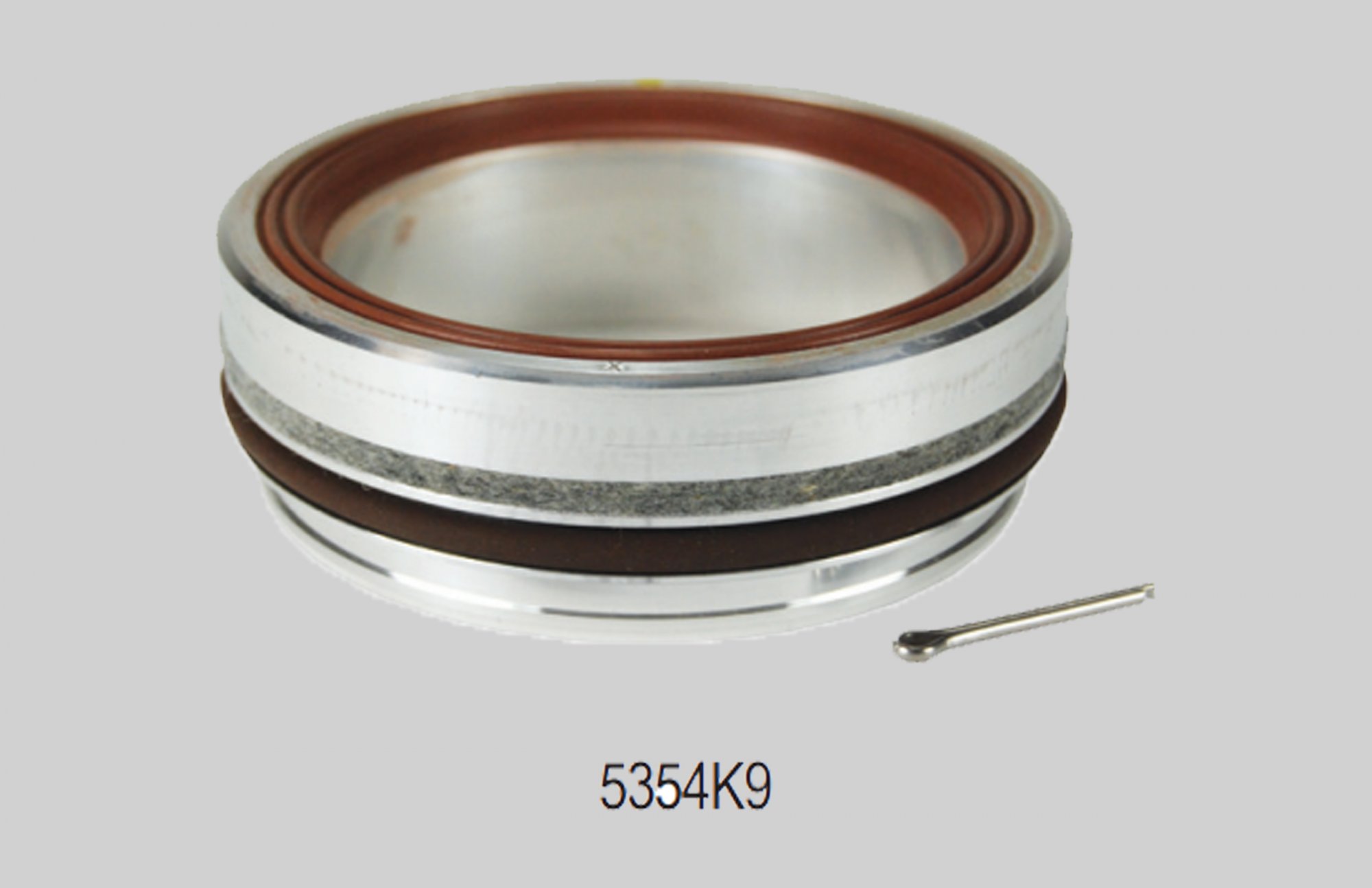

| 5354K9 | Bonded FKM-B nose seal (for 5300B) |

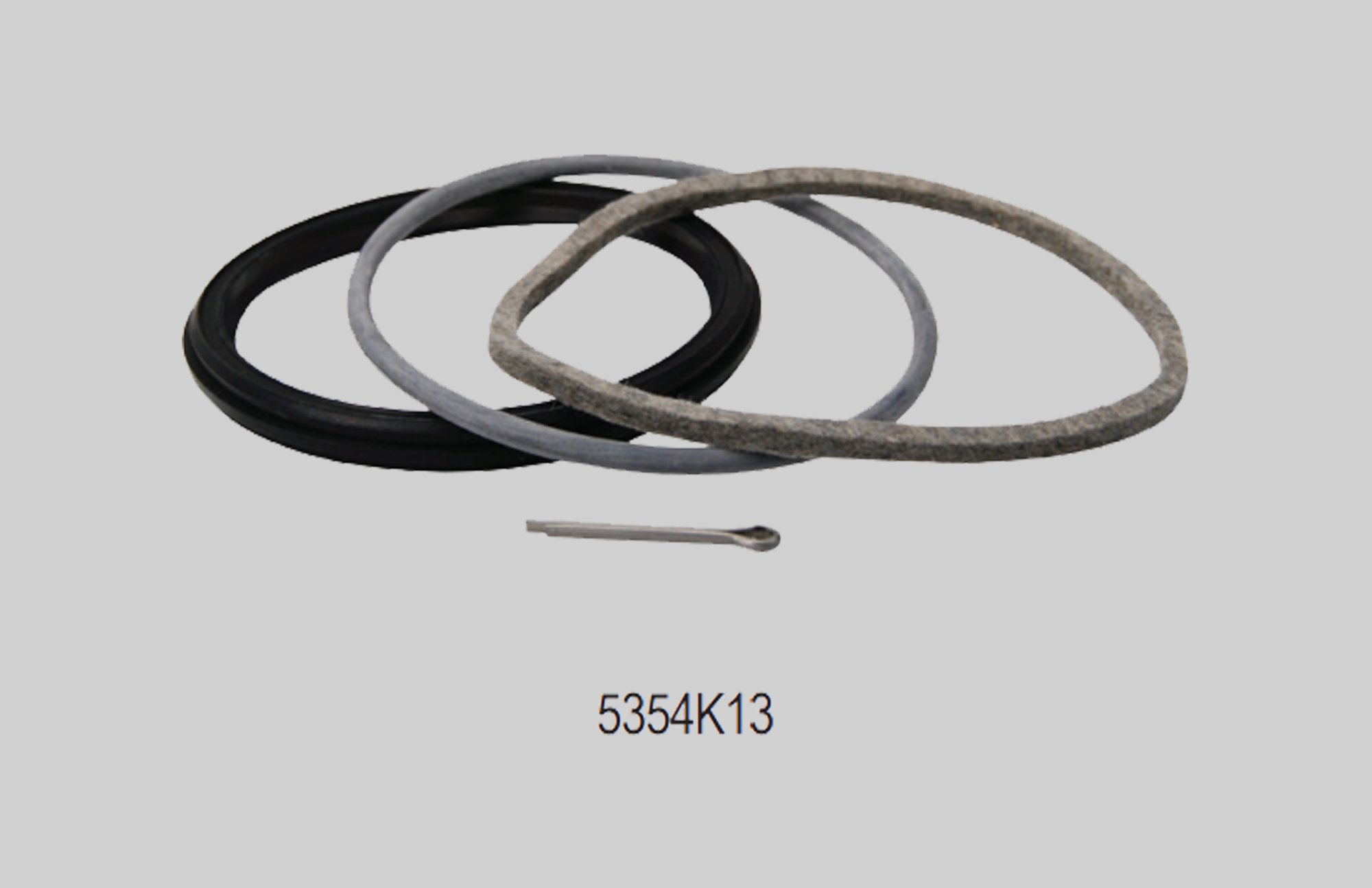

| 5354K13 | Buna replaceable nose seal kit (for 5400) |
| 5354K15 | FKM-B replaceable nose seal kit (5400B) |
